GAS-POWERED PULLING WINCH-HUNTER KIT
#GX35PCW3000-HK

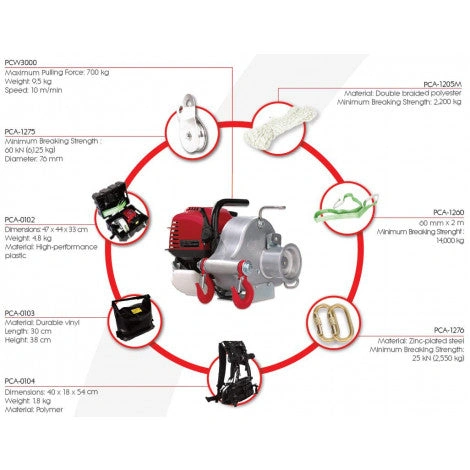

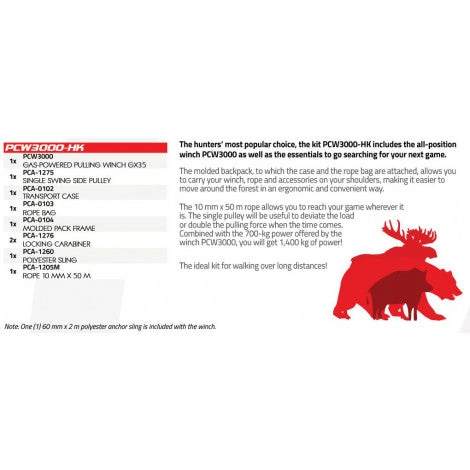

This kit includes the following items:

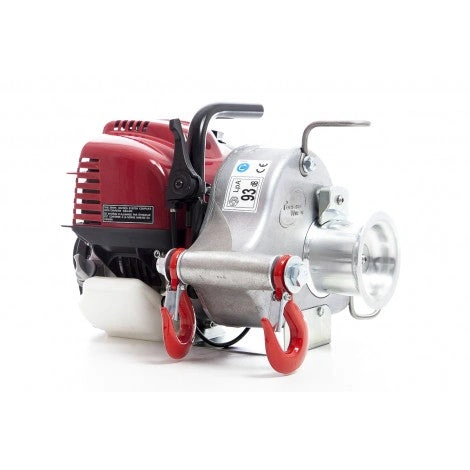

1 #PCW3000 Gas Powered pulling winch

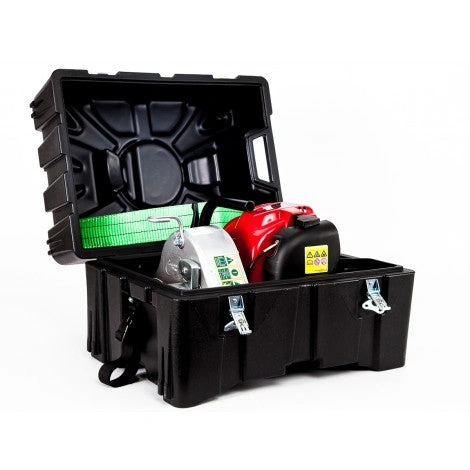

1 #PCA-0102 Transport case

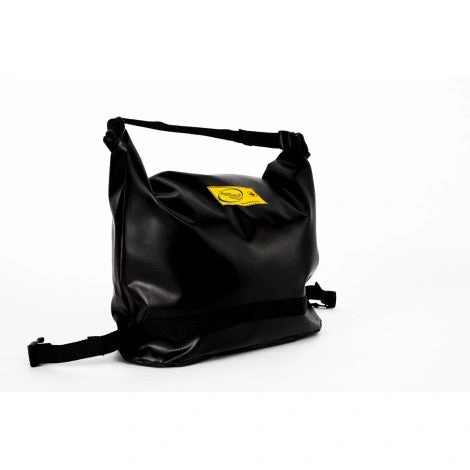

1 #PCA-0103 Vinyl rope bag

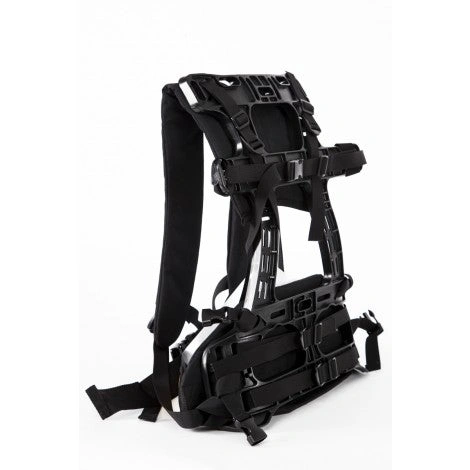

1 #PCA-0104 Molded pack frame for transport case
1 #PCA-1205M Double Braided Polyester rope 10mm x 50m

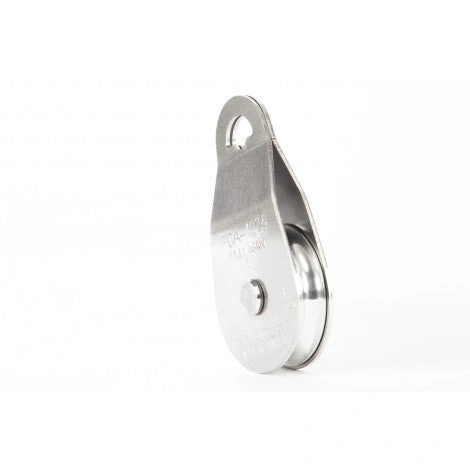

1 #PCA-1275 Durable Pulley

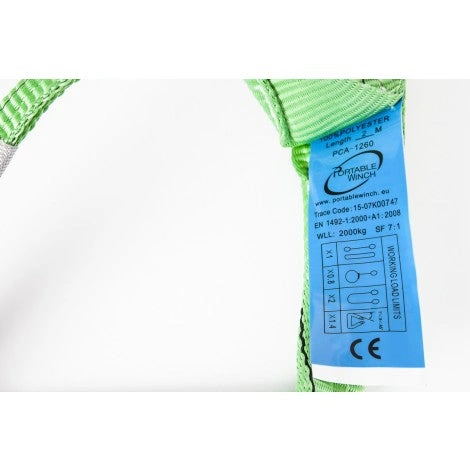

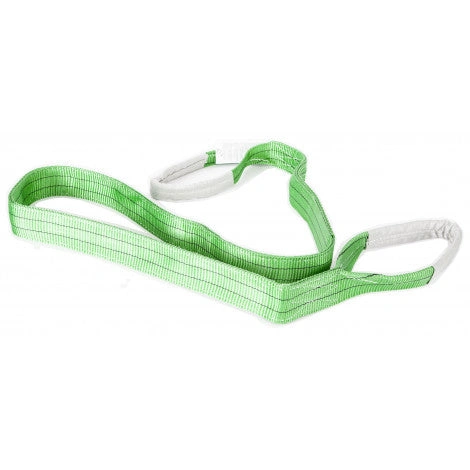

1 #PCA-1260 Multi-purpose sling (2' - 3/8' x 6' - 3/16')

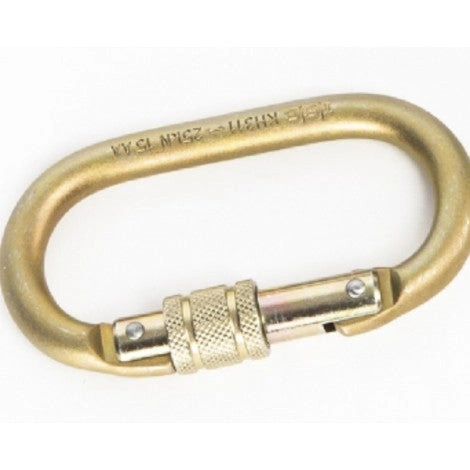

2 #PCA-1276 Muti-purpose aluminium carabiner with srew gate lock
#PCW300 Gas Powered pulling winch Specifications:
Maximum Pulling Force With Standard Drum : 1,600 lbs.
Double Line Pulling Force With Standard Drum : 3,200 lbs.
Speed-
76 mm drum : 33 ft. /min
Rope -
Length : Unlimited
Pulling : Double braided with low stretch
Minimum Diameter : 3/8'
Maximum Diameter : 1/2'
Ideal diameter : 3/8'
Engine/Motor & Gear Box-
Engine/Motor : Honda 4-stroke GX35 cc - all positions Clutch : N/A - Direct Drive Gear Box and Gears : Aluminium alloy gear box. Heat treated 3-stage helical spur gears. Shafts mounted on ball bearings. Oil bath lubrication. Gear Ratio : 200:1 Brake : Anti-reversing roller clutch bearing Work Cycle : Continuous
-
-
Part # POR PCW3000-HK
